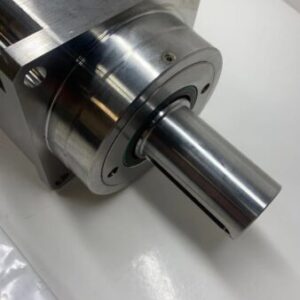

New THOMSON MICRON ULTRA TRUE 10 GEARHEAD UT010-020-0-RM100-88 42-114344-J356 - Image 1
New THOMSON MICRON ULTRA TRUE 10 GEARHEAD UT010-020-0-RM100-88 42-114344-J356 - Image 2
New THOMSON MICRON ULTRA TRUE 10 GEARHEAD UT010-020-0-RM100-88 42-114344-J356 - Image 3
New THOMSON MICRON ULTRA TRUE 10 GEARHEAD UT010-020-0-RM100-88 42-114344-J356 - Image 4
NEW- Boston Gear 700 Series Right Angle Reducer 15:1 .56HP Input F71315B56 261lb
BRAND NEW Warner Electric 5200-452-011 Field & Rotor Assembly SF/SFC500 7/8” 90V

New THOMSON MICRON ULTRA TRUE 10 GEARHEAD UT010-020-0-RM100-88 42-114344-J356

$2,200.00

Availability: 1 in stock Category:

Description

New THOMSON MICRON ULTRA TRUE 10 GEARHEAD UT010-020-0-RM100-88 42-114344-J356.

42-114344-J356

UT010-020-0-RM100-88, Gearhead, True Planetary, UltraTRUE, Size 10, 20:1 Ratio, 5 arc-minutes Backlash, Helical Crowned, Inline Stainless Steel Output Shaft, Anodized Aluminum Housing

Backlash 5 arc-minutes

Bolt Tightening Torque – Final 36 Nm

Bolt Tightening Torque – Pre 1.8 Nm

Duty Cyclical Duty

Efficiency 90%

Flange Square 100 mm

Helical Crowned Helical Crowned

Housing Material Anodized Aluminum

inline, Right angle Inline

Material Stainless Steel Output Shaft, Anodized Aluminum Housing

Number of Stages 2

Ratio :1 20

RediMount Used RM100-88

RPM Maximum, Input 5000 RPM

RPM Maximum, Output 250 RPM

Shaft – Single/Dual/Hollow Single

Shaft material Stainless Steel Output Shaft

Washdown Compatible No

Weight 8 kg

Shipped with UPS

Location XX5

Additional information

Weight 15.3 kg
Dimensions 14 × 8 × 8 cm
Brand

thomson micron
MPN

42-114344-J356
Condition

New – Open box
